Slot in PCB

Circuit Board Design and EMC

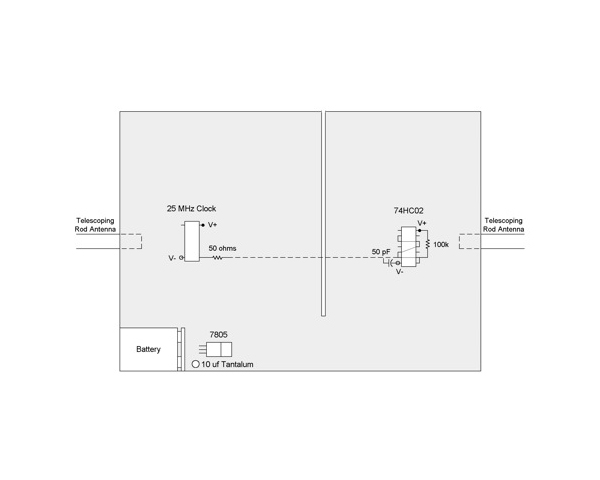

A single slot cut across an otherwise solid return plane can cause havoc because of its affect on the return inductance. From “The ‘Current Driven Model’ -- Experimental Verification and the Contribution of Idd Delta to Digital Device Radiation.”
